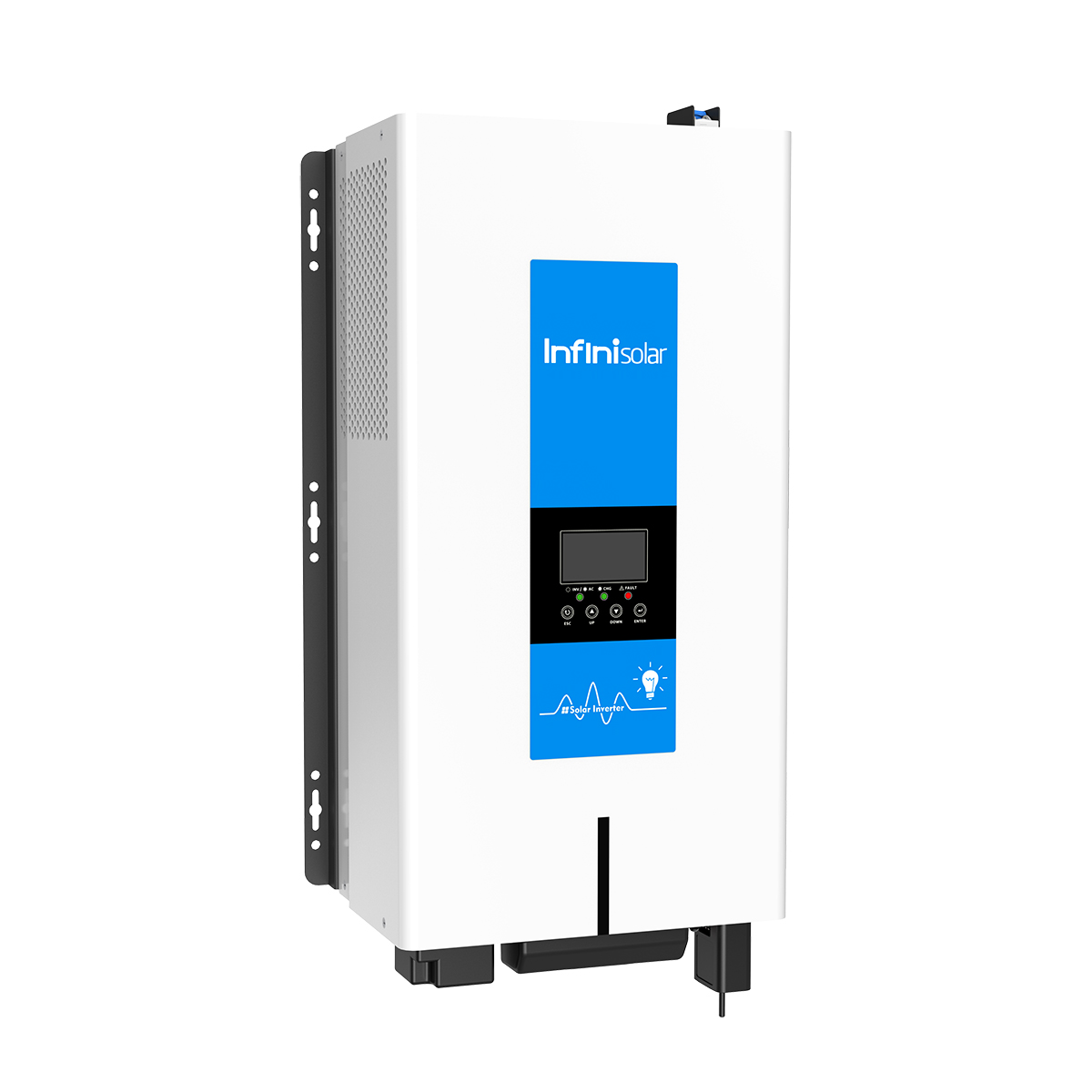

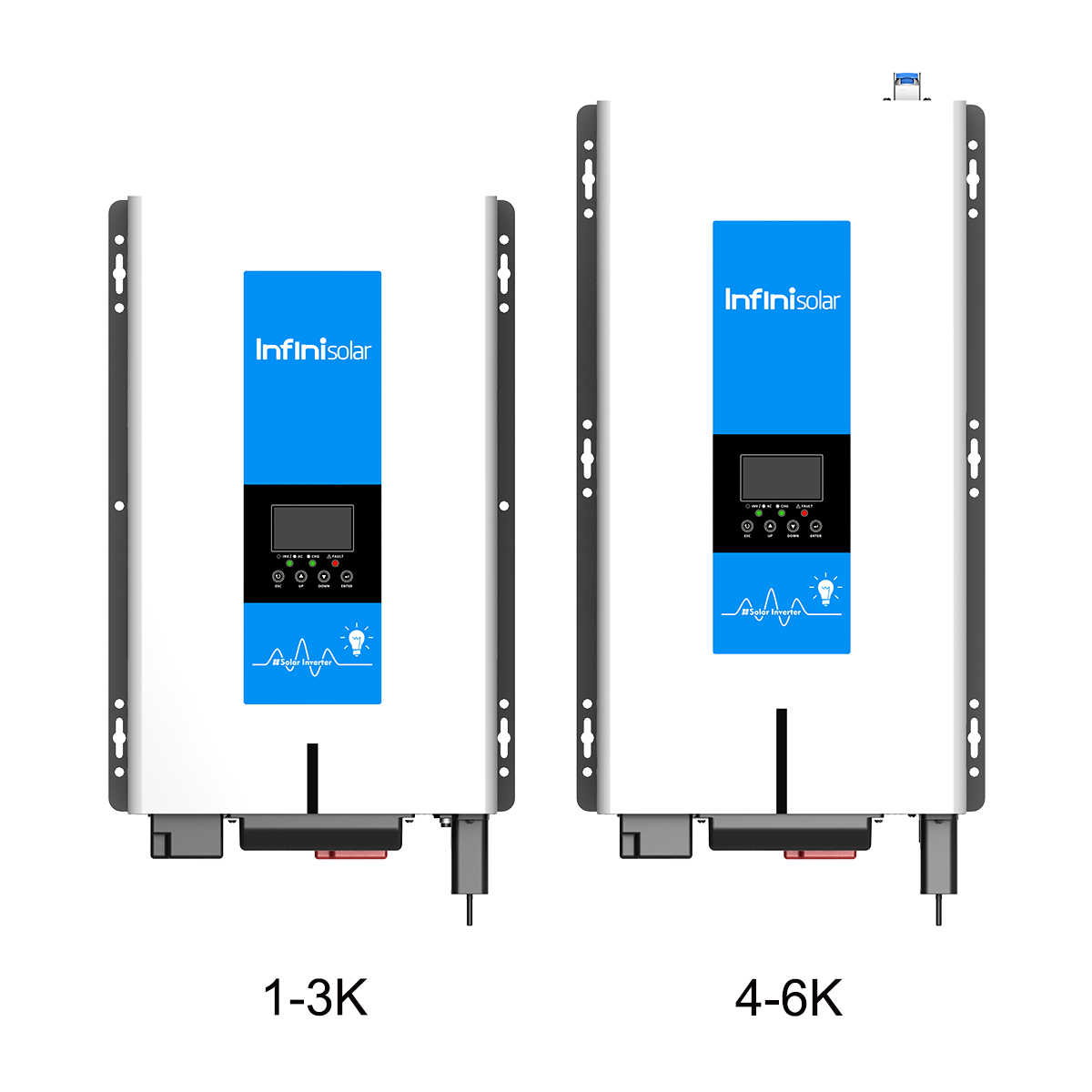

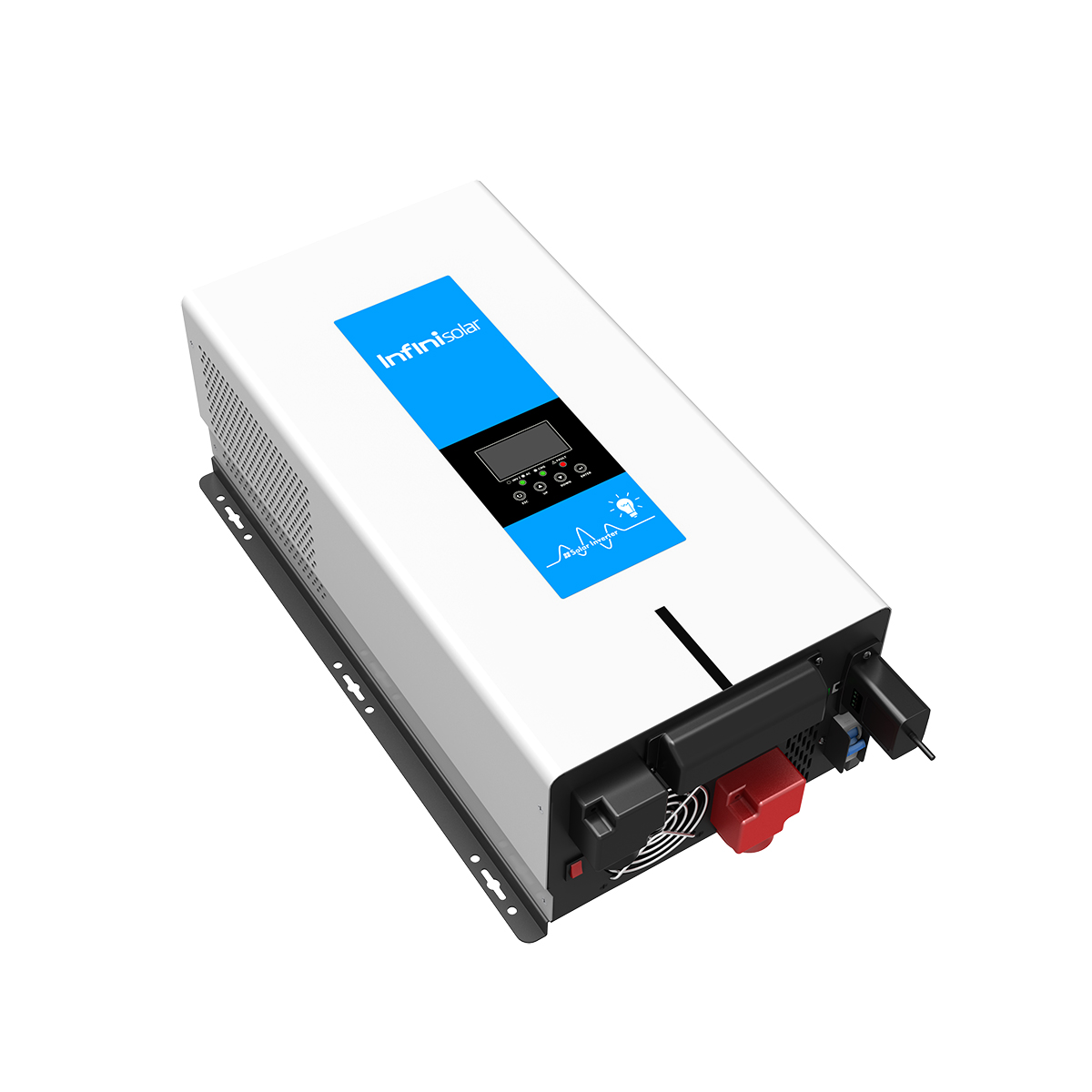

Off Grid Solar Inverter VP300 Series (4/7.5KVA)
Low Frequency Solar Inverter/Charger
24V/48V | 4KVA/7.5KVA | 145V
• Pure sine wave output
• 3 Steps charging
• Overload and short-circuit protection
• Set charging voltage/charging current
• Battery low voltage shutdown point can be set to 10/10.5/11V/11.5V
• Power-save mode
• Set utility priority /battery priority
• Set utility input wide/narrow voltage range
• Inverter voltage can be set to 220V/230V/240V
• Inverter frequency can be set to 50Hz/60Hz
• Set utility charging on/off switch
• Inbuilt 80A MPPT Solar Charge Controller
• Acid or Lithium Select
• WiFi port
Built-In MPPT Charge Controller
The built-in MPPT solar charge controller streamlines the system installation process.
Pure Sine Wave Inverter
A DC to AC inverter that generates a clean, stable, and compatible pure sine wave.
Battery Charger
An AC to DC battery charger that is compatible with a variety of solar batteries.
All-in-One Integration
The Hybrid Inverter is an enhanced iteration of the all-in-one system, incorporating additional features.
VP300 series is very economical pure sine wave solar inverter, Inbuilt with 80A MPPT charger; Solar/AC priority is configurable, when setting solar priority, solar will charge batteries as first priority, and AC can also charge batteries when solar charger current is too lower, in this way system charge is optimazed best. it enables inverter to operate with all kinds of home appliances.
PROJECT CASES
We Have Furnished Many Clients With Solar System And Service Over 100+ Countries Since 1998.
WHY OPT FOR OUR SERVICES
⭐ Expertise—With over two decades of dedicated focus on lithium batteries, inverters, and leadership in solar energy.
⭐ Certification—Our battery products are approved by the National Center for Quality Supervision and Inspection, with certifications including UL, CE, ISO, and IEC.
⭐ Quality Raw Materials & Processes—All our products are crafted using Grade A LiFePO4 cells sourced from the top five brands, adhering to stringent UL standards.
⭐ Swift Response—We offer customization support with a sales team comprising professional engineers. Our 24-hour online service ensures quick problem-solving for our customers.
| MODEL | VP300-4K | VP300-7.5K | |
|---|---|---|---|
| Nominal Battery System Voltage | 24VDC | 48VDC | |
| INVERTER OUTPUT | |||
| Rated Power | 4KVA/3.2KW | 7.5KVA/5.5KW | |
| Waveform | Pure sine wave / same as input (bypass mode) | ||
| Nominal Output Voltage RMS | 220V / 230V / 240VAC (±10% RMS) | ||
| Output Frequency | 50Hz / 60Hz ±0.3Hz | ||
| Inverter Efficiency (Peak) | >88% | ||
| Line Mode Efficiency | >95% | ||
| Power Factor | 1.0 | ||
| Typical Transfer Time | 10ms(max) | ||
| AC INPUT | |||
| Voltage | 230VAC | ||
| Selectable Voltage Range | 96~132VAC 155~280VAC(For personal computers) | ||
| Frequency Range | 50Hz / 60Hz(Auto sensing) 40~80Hz | ||
| BATTERY | |||
| Minimum Start Voltage | (10V / 10.5V / 11V )+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | ||
| Low Battery Alarm | (10V / 10.5V / 11V )+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | ||
| Low Battery Cut Off | 10V / 10.5V / 11V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | ||
| High Voltage Alarm | (13.8-14.5V)+1V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | ||
| High Battery Voltage Recover | (13.8-14.5V)+0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) | ||
| Idie Consumption-Search Mode | Load ≤50±20W(120V)/100±20W(220V) | ||
| CHARGER | |||
| Output Voltage | Depends on battery type | ||
| Charge AC Input Breaker Rating | 230V | 2-3K/30A | 4-6K/40A |
| Overcharge Protection S.D. | 15.7VDC for 12VDC mode (*2 for 24VDC mode, *4 for 48VDC mode) | ||
| Maximum Charge Current | 40A | 35A | |
| BYPASS & PROTECTION | |||
| Input Voltage Waveform | Sine wave (grid or generator) | ||
| Nominal Input Frequency | 50Hz or 60Hz | ||
| Overload Protection (SMPS Load) | Circuit breaker | ||
| Output Short Circuit Protection | Circuit breaker | ||
| Bypass Breaker Rating | 230V | 1-3K/30A | 4-6K/40A |
| Max Bypass Current | 30Amp | ||
| SOLAR CHARGER | |||
| Maximum PV Array Power | 2500W | 5000W | |
| Maximum PV Charge Current | 80A±4A | ||
| DC Voltage | 12V / 24V auto work | 24V / 48V auto work | |
| MPPT Range @ Operating Voltage | 16~100VDC @ 12V/32~145VDC @ 24V | 32~145VDC @ 24V/64~145VDC @ 48V | |
| Maximum PV Array Open Circuit Voltage | 145VDC | ||
| Standby Power Consumption | <2W | ||
| MECHANICAL SPECIFICATIONS | |||
| Mounting | Wall Mount | ||
| Dimensions (W*H*D) | 423*247*197mm | 597*247*197mm | |
| Net Weight (Solar CHG)(kg) | 25.2 | 45.7 | |
| Shipping Dimensions (W*H*D) | 585*387*322mm | 758*387*322mm | |
| Shipping Weight (Solar CHG)(kg) | 28.2 | 50 | |
| OTHER | |||
| Operation Temperature Range | 0℃ to 40℃ | ||
| Storage Temperature | -15℃ to 60℃ | ||
| Audible Noise | 60dB MAX | ||
| Display | LED+LCD | ||
| Standard Warranty | 1 year | ||
